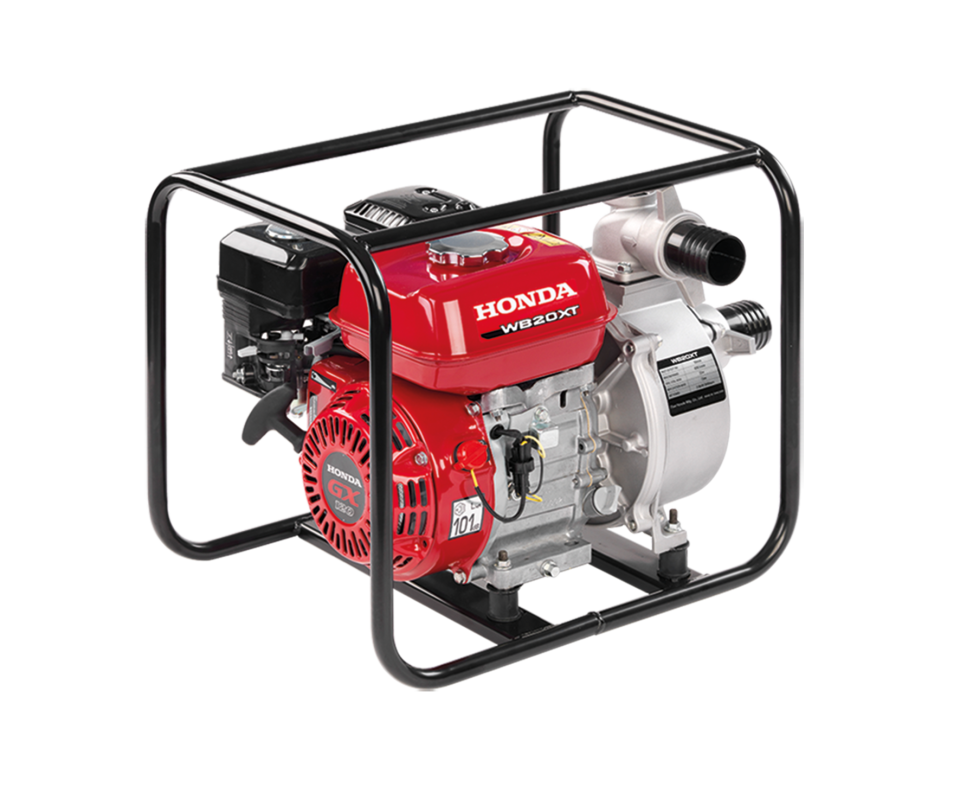

WB20 Water Pump

Portable Powerful Performance

WB20XT
overview

Wb20 water Pump

ENGINEERING EXPERTISE

Drawing on decades of engineering advancements, the Honda GX120 engine that powers the WB20 ensures easy starting, easy usage, outstanding fuel economy, low emissions and long-lasting durability.

With oil alert and rubber mounts, the full frame type provides stability and delivers smooth running with less vibration. The result is a reliable, long-lasting pump that will perform time after time.

PERFORMANCE

With capacity to deliver 600 litres per minute, this 2" Volume Water Pump has a maximum suction head of 8m and a maximum total head of 32m. Like so many other Honda products, the WB20 starts first time, every time with Honda’s famous one pull easy start system.

It runs on unleaded fuel, so you’ll never have to mix oil and petrol again. The result? An environmentally-friendly pump with low emissions & fuel consumption.

CONTACT US

features
/10

SPECIFICATIONS

YOUR PUmp IN DETAIL

WB20
Powertrain
Product Code WB20XT4DRXU
Pump Type Centrifugal volume pump
Engine GX120
Displacement (cc) 118
Fuel Type Unleaded
Oil Alert Yes
Performance
Total Head (m) 32
Suction Head (m) 8
Max Discharge Capacity 600 litres/min
Self Priming Time (at 5m) 110 sec
Fuel Consumption 1 l/hr
Mounting Rubber
Hose Band/Stainer Yes
Dimensions, Weights and Capacities
Fuel Tank Capacity 2.5l
Discharge Port Diameter (mm) 50
Suction Port Diameter (mm) 50
Length (mm) 455
Width (mm) 365
Height (mm) 420
Dry Weight (kg) 21

the honda advantage

no fuel mixing

easy start

FUEL EFFICIENT & ENVIRO FRIENDLY

quiet operation

4 Year Domestic Warranty

4 Year Domestic Warranty


Honda's leading range of power equipment comes with leading warranty periods. Our range of power equipment products carrying up to a 4 year domestic warranty*.

With regular servicing by a Honda authorised dealer, using only Honda Genuine Parts and Accessories, your Honda product will work hard around your home for many years.

Find more details on Honda's warranties and the warranty schedule on our warranty page.
