HF2417 RIDE ON MOWER

THE CUTTING EDGE

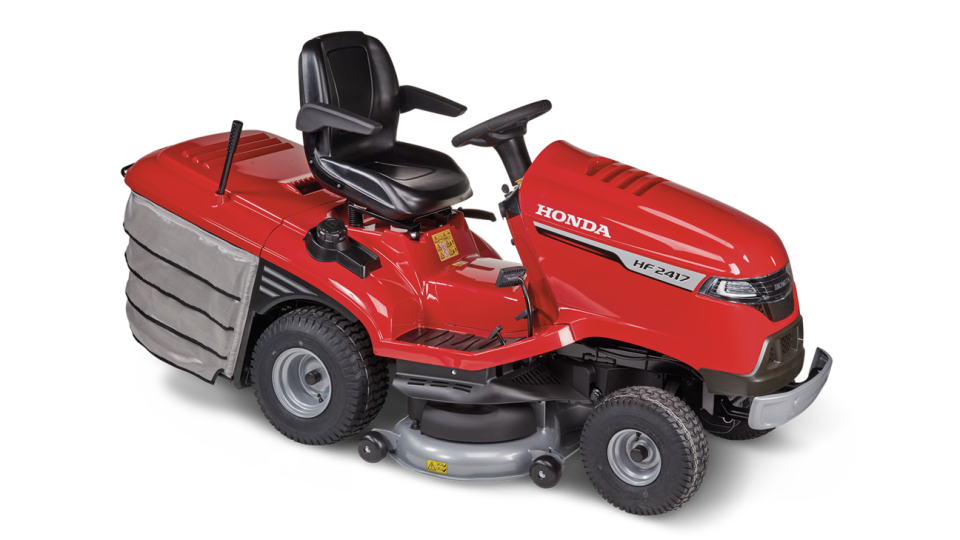

HF2417 Ride On Mower

Product Overview:

  • Cutter Deck Size: 102cm
  • Garden Size: Very Large. Suitable for lawns up to 6,000m² (1.5 acres)
  • Transmission: Variable Hydrostatic Drive - This lawnmower's speed is adjusted by pedal control
  • Mulching: Versamow Selective - You can chose whether you want to collect the grass cuttings into the bag or finely shred them onto the lawn
  • Grass Bag Capacity: 300L
  • Grass Bag Dumping: Manual - Dispose of grass clippings by lifting a lever
  • Soft Grip Steering and Colour LCD Display: Yes
  • Speed Hold: Yes - You are able hold your speed at 4 intervals (2/3/5/6km/h)
  • USB Charging and Device Holder: Yes
overview

HF2417 ride on mower

Now equipped with a new Euro 5 compliant engine, this product is one of the latest generation Honda lawn tractor models.

Several new features have also been developed for the new lawn tractor range with enhanced convenience and comfort in mind. The latest innovations include a full colour LCD display, a Speed Hold System and USB charging so choose your model based on your requirements.

ENGINE:

Power is by Honda’s smooth and powerful GCV530 V-twin motor. This offers great fuel consumption with low emissions, low vibration, and long operational life span.

DRIVE:

A smooth foot operated Hydrostatic transmission means both of the operators hands are on the steering wheel rather than one on a hand controller. This allows more control making it safer for the operator.

DASH:

All of the mowers vital systems are clearly shown at a glance thanks to LED technology. Everything from low fuel level, battery voltage and blade engagement are shown. There is also an alarm to notify the operator when the catcher is full.

SAFETY:

The unit has many safety cut outs to protect the user. A button allows the user to reverse with the blades in operation. Automatic headlights increase the visual safety of the mower and improves visibility in low light conditions.

ENQUIRE NOW

features
/10

SPECIFICATIONS

YOUR Ride on mower IN DETAIL

HF2417
Function
Blade Brake Clutch Electromagnetic
Optiflow Yes
Catcher Bag Dumping Manual
Cutting Positions 7
Noise Level (dB (A)) 100
Mulching Versamow Selective Mulching
Rear Deflector Optional
Tow Hitch Optional
Dimensions
Length (mm) 2445
Width (mm) 1060
Height (mm) 1230
Dry Weight (kg) 239
Cutting
Cutter Deck Size (cm) 102
Number of Blades 2
Synchro or Asynchro Synchro
Height Adjustment (mm) 29-90
Catcher Capacity (Litres) 300
Engine
Engine 4-stroke OHC V-twin
Displacement (cc) 530
Engine Model GCV530
Rated Power (kW/rpm) 9.4/2800
Fuel Tank Capacity 8.5l
Engine Oil Capacity 1.3l
Transmission Variable: Hydrostatic
Driving Speed (km/h) Progressive 0 to 8.2

the honda advantage

power & torque

Optiflow® unique airflow system

Versamow System™

USB charging

2 year domestic warranty

Honda's leading range of power equipment comes with leading warranty periods. With our range of ride on mowers carrying up to a 2 year domestic warranty*.

With regular servicing by a Honda authorised dealer, using only Honda Genuine Parts and Accessories, your Honda product will work hard around your home for many years.

Find more details on Honda's warranties and the warranty schedule on our warranty page.
