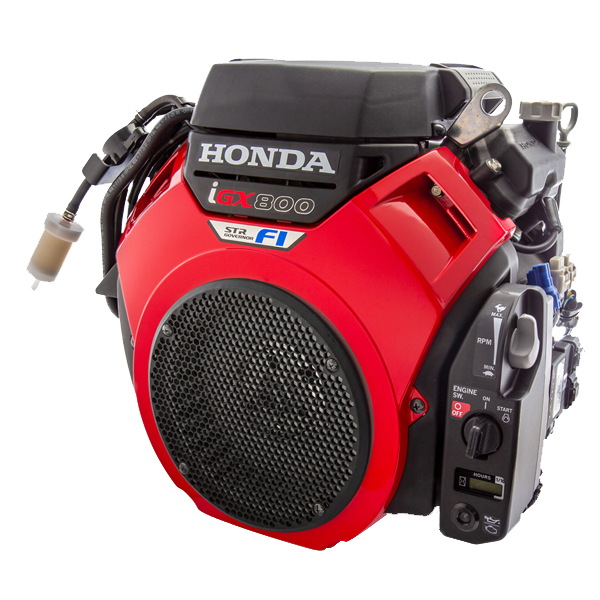

IGX800

FEATURES

This engine features a compact design including a hemispherical combustion chamber, integrated cylinder and cylinder head and forged steel connecting rods.  Other features that users will appreciate include a digital ignition system, long-life air filter, automotive-style starter motor and a pressurised fuel pump.  All these elements contribute to high efficiency, superior cooling, low noise and vibrations as well as reliable performance.

COMMON APPLICATIONS

The Honda iGX engines are the very finest stationery engines being produced by powering construction equipment (concrete saws, ride-on concrete trowels, vibratory rollers, generators, etc.) and lawn and garden equipment (tractors, shredders, etc.).

PROVEN RELIABILITY

The iGX800's high capacity pump facilitates consistent oil delivery, and a handy oil alert so there is no risk of running dry and doing damage to the engine. There's a dual cylindrical air filter, and a large diameter air intake on board for superior cooling, perfect when operating over long periods of time.

The result is a long-lasting, high-performing and reliable engine.

FUEL EFFICIENT OPERATION

The EFI (electronic fuel injection) configuration eliminates the carburetor and allows an electronically-controlled fuel injector to deliver the required quantity of fuel, thus offering a number of key features for the new Honda models, including:

  • Fuel efficiency due, in part, to an electronic control system that continuously monitors and adjusts the engine’s air/fuel ratio according to variable operating conditions.

  • Enhanced reliability and less maintenance due to reduced fuel-associated carburetor issues.

  • Improved starting by continuously optimising the air/fuel mixture.

  • Improved user comfort by eliminating the manual choke and fuel shut-off valve.

Enquire
Specifications
ModelGX800IRH
Type4-stroke OHV petrol engine, horizontal shaft
Bore & Stroke2 / 83 x 72mm
Displacement799 cc
Compression Ratio9:1
Net Power

18.5 kW (24.8 HP) / 3600rpm

Continuous Rated Power

13.3 kW (17.8 HP) / 3000 rpm 15.0 kW (20.1 HP) / 3600rpm

Max Net Torque54.5Nm / 5.56 kgfm / 2500rpm
Ignition SystemFull transistor ignition coil
Starting SystemElectric Start
Fuel Consumption at Rated Power6.88 L/hr - 3600rpm
Recommended FuelUnleaded
Lubrication SystemFull-pressure
Descriptor Text

Without oil filter replacement: 1.6L
With oil filter replacement: 1.8L

Dry Weight48.2 kg approx.
Length429 mm
Width492 mm
Height438 mm
