reliable, fuel efficient performance
An exhaust decompression system and unique low inertia design means the GX35 will start 'first time every time'.
Maintenance is made easy with an accessible spark plug and simple drainage and refilling of oil. High quality materials, fit, and finish ensure that your GX35 Mini 4-Stroke can be relied upon whenever you need it.

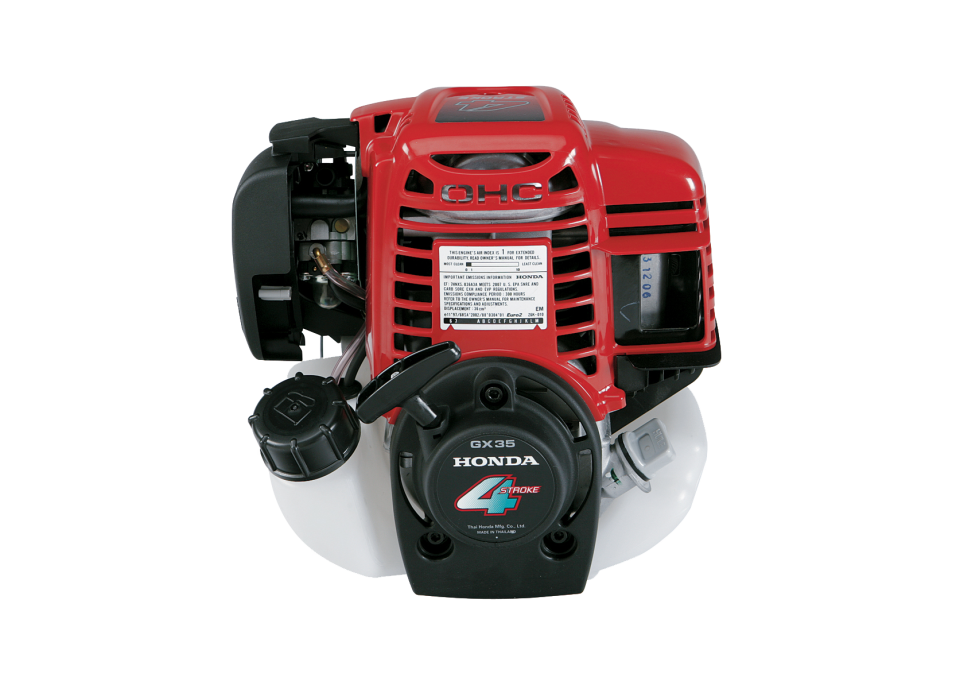

The gutsy, ultra-lightweight GX35 Mini 4-Stroke engine efficiently delivers the kind of powerful, quiet performance that you’d expect from a larger engine – but in a very compact package.
The GX35 is used by commercial gardeners and groundskeepers throughout New Zealand. It's and engine used to power many lawn & garden equipment. It's also well-known for powering Tillers/Cultivators, Water Pumps, Agricultural Equipment and Construction/Industrial Equipment.
The world's lightest OHC engine, the Honda Mini 4-stroke engine requires no fuel/oil mixing, and runs at approximately half the operating cost of comparable 2-stroke engines.
A full 360° 'any-side-up' operation allows you to use and store the GX35 in any position, taking advantage of the exclusive rotary-slinger lubrication system. The carburetor is equipped with an accelerator pump for fast, easy acceleration, and an efficient port configuration and large diameter valves maximise power output.
YOUR ENGINE IN DETAIL
|Type||4-stroke, overhead cam, single-cylinder, horizontal shaft|
|Bore & Stroke||39 x 30mm|
|Net Power||1.0kW (1.3HP) at 7,000rpm|
|Max Net Torque||1.6 Nm (1.2 lbs ft) at 5,500rpm|
|Ignition System||Transistorised magneto ignition|
|Starting System||Recoil Starter|
|PTO Shaft Rotation||Counter-clockwise (from P.T.O. side)|
|Fuel Consumption at Rated Power||0.71 L/h at 7,000rpm
|Lubrication System||Oil Mist|
|Recommended Oil||10W/30 API SG|
|Fuel Tank Capacity||0.65L|
|Dimensions||198 x 234 x 240mm|
|Dry Weight||3.33 kg (w/o clutch)|
the honda advantage
2 year domestic warranty
Honda's leading range of power equipment comes with leading warranty periods. Our range of GX mini engines carrying up to a 2 year domestic warranty*.
With regular servicing by a Honda authorised dealer, using only Honda Genuine Parts and Accessories, your Honda product will work hard around your home for many years.
Find more details on Honda's warranties and the warranty schedule on our warranty page.
Ready to take the next step towards your Honda engine? With our nationwide network of dealers, from the far north to the deep south and everywhere in between. You can purchase online, or enquire now for more information on Honda Engines.
