reliable, fuel efficient performance
The GX390 offers precision-engineered components resulting in lower vibration, and a Ball Bearing-supported Crankshaft for greater stability. It also offers an improved piston design and a heavy duty balancer shaft to deliver smooth performance.
Helical cut gears, a large capacity, multi-chamber exhaust system and sophisticated air intake system also makes for an exceptionally quiet engine.
And with oil alert, a simple throttle control, large Fuel Tank and automotive type fuel cap, dual oil drains and fills, an easily accessible spark plug make it easy to use and maintain.
THE NEXT GENERATION OF GX ENGINES

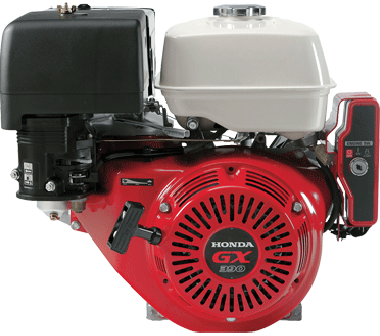

With the GX390, you’re looking at one of the best engines in the business. More power. Quieter performance. Lower fuel consumption. Lower emissions. Better features. Exceptional performance. Honda’s GX series lives up to the legend, and then some.
Used in all kinds of commercial, agricultural and forest equipment. Its also used for small vehicles, water pumps and commercial lawn and garden equipment.
HARDWORKING AND ROBUST
A digital CDI ignition system with variable timing and an increased compression ratio combines with the GX390's Precision Camshaft design to offer precise valve timing and optimal valve overlap for better fuel efficiency.
It draws on decades of Honda engineering with its OHV design, delivering increased efficiency and optimal power transfer where and when you need it.
The use of lightweight, noise-reducing materials and a forged steel crankshaft & rigid crankcase results in an exceptionally quiet engine – an improved piston design reduces mechanical noise, with an overall reduction of engine noise by up to 5dB.
YOUR ENGINE IN DETAIL
|Type||4-stroke, overhead valve, single-cylinder, horizontal shaft|
|Bore & Stroke||88 x 64mm|
|Net Power||8.2kW (11.0HP) at 3,600rpm|
|Continuous Rated Power|
|Max Net Torque||25.1Nm at 2,500rpm
|Ignition System||Transistorised magneto ignition|
|Starting System||Recoil (Electric Starter Optional)|
|PTO Shaft Rotation||Counter-clockwise (from P.T.O. side)|
|Fuel Consumption at Rated Power||3.7 L/h at 3,600rpm|
|Recommended Oil||10W/30 API SG|
|Fuel Tank Capacity||6.1L|
|Dimensions||405 x 450 x 443mm|
the honda advantage
3 year warranty
Honda's leading range of power equipment comes with leading warranty periods. Our range of GX engines carrying up to a 3 year warranty*.
With regular servicing by a Honda authorised dealer, using only Honda Genuine Parts and Accessories, your Honda product will work hard around your home for many years.
Find more details on Honda's warranties and the warranty schedule on our warranty page.
Ready to take the next step towards your Honda engine? With our nationwide network of dealers, from the far north to the deep south and everywhere in between. You can purchase online, or enquire now for more information on Honda Engines.
