reliable, fuel efficient performance
THE WHOLE PACKAGE

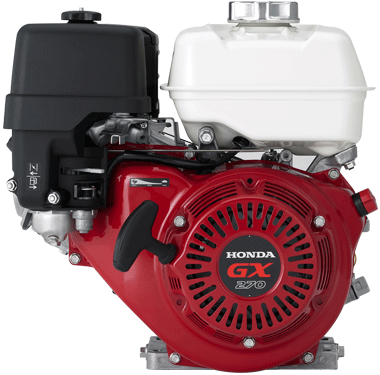

The GX270's ball bearing-supported crankshaft, cast iron cylinder sleeve, helical cut gears and precision engineered components result in greater stability and lower vibration for you, no matter what the application.
With a simple throttle control, large fuel tank and automotive type fuel cap, dual oil drains and fills, an easily accessible spark plug and heavy duty recoil starter, the GX270 has it all.
With the GX270, you’re looking at one of the best engines in the business. More power. Quieter performance. Lower fuel consumption. Lower emissions. Better features. Exceptional performance. Honda’s GX series lives up to it reputation.
The GX270 is used in all sorts of applications. From pressure washers and construction/industrial equipment to generators and commercial lawncare equipment.
FUEL EFFICIENCY WITH HIGH OUTPUT OPERATION
A digital CDI ignition system with variable timing and an increased compression ratio combines with the GX270's Precision Camshaft design to offer precise valve timing and optimal valve overlap for better fuel efficiency.
It draws on decades of Honda engineering with its OHV design, delivering increased efficiency and optimal power transfer for where you need it.
And the use of lightweight, noise-reducing materials and a forged steel crankshaft & rigid crankcase results in an exceptionally quiet engine – an improved piston design reduces mechanical noise, with an overall reduction of engine noise by up to 5dB.
YOUR ENGINE IN DETAIL
|Type||4-stroke, overhead valve, single-cylinder, horizontal shaft|
|Bore & Stroke||77 x 58mm|
|Net Power||6.0kW (8.0HP) at 3,600rpm|
|Continuous Rated Power||5.1kW (6.8HP) at 3,600rpm|
|Max Net Torque||17.7Nm at 2,500rpm|
|Ignition System||Transistorised magneto ignition|
|Starting System||Recoil (Electric Starter Optional)|
|PTO Shaft Rotation||Counter-clockwise (from P.T.O. side)|
|Fuel Consumption at Rated Power||2.5 L/h at 3,600rpm|
|Recommended Oil||10W/30 API SG|
|Fuel Tank Capacity||5.3L|
|Dimensions||380 x 430 x 410mm|
the honda advantage
3 year warranty
Honda's leading range of power equipment comes with leading warranty periods. Our range of GX engines carrying up to a 3 year warranty*.
With regular servicing by a Honda authorised dealer, using only Honda Genuine Parts and Accessories, your Honda product will work hard around your home for many years.
Find more details on Honda's warranties and the warranty schedule on our warranty page.
Ready to take the next step towards your Honda engine? With our nationwide network of dealers, from the far north to the deep south and everywhere in between. You can purchase online, or enquire now for more information on Honda Engines.
