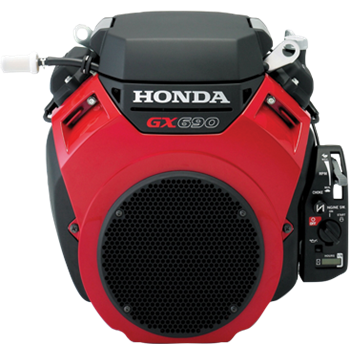

GX690

reliable, fuel efficient performance

PROVEN RELIABILITY

The GX690's high capacity pump facilitates consistent oil delivery, and a handy oil alert so there is no risk of running dry and doing damage to the engine. There's a dual cylindrical air filter, and a large diameter air intake on board for superior cooling, perfect when operating over long periods of time.

The result is a long-lasting, high-performing and reliable engine.

overview

gx690

COMMON APPLICATIONS

Honda's V-Twin range of engines are the cream of the crop, powering pressure washers, water pumps and commercial lawncare equipment.

Commonly used to power pressure washers, generators, construction, industrial, horticultural equipment and small vehicles.

FUEL EFFICIENT OPERATION

The fuel economy of the GX690 V-Twin is similar to fuel injection, with the simplicity of carburetion ensuring that running this unit is easy on both your pocket and the environment.

It features a digital CDI ignition system with variable timing, as well as a forged steel crankshaft and insert style rod bearings for efficient operation. There's also a rev limiter to protect against damage from over-revving. A hemispherical combustion chamber delivers rapid combustion.

Add a two barrel inner-vent carburetor for more precise fuel metering and a 9.3:1 compression ratio, and you'll be generating high power output without the need for premium fuel.

ENQUIRE NOW

TECHNICAL SPECS

features
/10

SPECIFICATIONS

YOUR ENGINE IN DETAIL

GX690
Performance
Model GX690
Type Air cooled 4-stroke OHV petrol engine, 90° V-twin design, horizontal shaft
Bore & Stroke 2 / 78 x 72mm
Displacement 688cm3
Compression Ratio 9.3:1
Net Power 16.5 kW (22.1 HP) / 3600rpm
Continuous Rated Power 11.5 kW (15.4 HP) / 3000 rpm 13.0 kW (17.4 HP) / 3600rpm
Max Net Torque 48.3 Nm / 4.93 kgfm / 2500rpm
Ignition System Digital CDI with variable ignition timing
Starting System Electric starter
Fuel Consumption at Rated Power 6.7 L/hr - 3600rpm
Lubrication System Full-pressure
Recommended Fuel Unleaded
Capacity and Dimensions
Oil Capacity 1.9L
Dimensions 429 x 410 x 438 mm (T-Type)
Dry Weight 44.6kg
