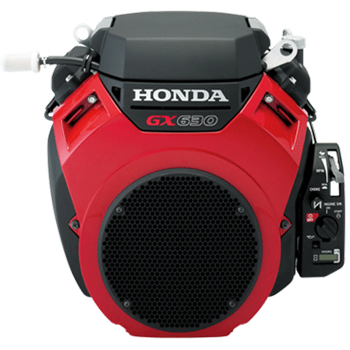

GX630

reliable, fuel efficient performance

PROVEN RELIABILITY

The GX630's high capacity pump facilitates consistent oil delivery, and a handy oil alert will help protect your motor from running dry.

There's a dual cylindrical air filter, and a large diameter air intake on board for superior cooling.

The result is a long-lasting, high-performing and reliable engine.

overview

gx630

APPLICATIONS

Honda's V-Twin range of engines are the cream of the crop, powering pressure washers, water pumps and commercial lawncare equipment.

The GX630 V-Twin can also be found in cultivators, agricultural equipment and generators as well as heavy-duty forestry and industrial industries.

FUEL EFFICIENT OPERATION

The fuel economy of the GX630 V-Twin is similar to fuel injection, with the simplicity of carburetion ensuring that running this unit is easy on both your pocket and the environment.

It features a digital CDI ignition system with variable timing, as well as a forged steel crankshaft and insert style rod bearings for efficient operation. There's also a rev limiter to protect against damage from over-revving.

Add a two barrel inner-vent carburettor for more precise fuel metering and a 9.3:1 compression ratio, and you'll be generating high power output without the need for premium fuel.

ENQUIRE NOW

TECHNICAL SPECS

features
/10

SPECIFICATIONS

YOUR ENGINE IN DETAIL

GX630
Performance
Model GX630  (GX630RHQZB3)
Type Air cooled 4-stroke OHV petrol engine, 90° V-twin design, horizontal shaft
Bore & Stroke 2 / 78 x 72 mm
Displacement 688cm3
Compression Ratio 9.3:1
Net Power 15.5 kW (20.8 HP) / 3 600 pm
Continuous Rated Power 10.5 kW (14.1 HP) / 3000rpm 12.0 kW (16.1 HP) / 3600rpm
Max Net Torque 48.3Nm / 4.93kgfm / 2500rpm
Ignition System Digital CDI with variable ignition timing
Starting System Electric starter
Cooling System Forced-Air
Fuel Consumption at Rated Power 6.0 L/hr - 3600rpm
Lubrication System Full-pressure
Recommended Fuel Unleaded
Capacity and Dimensions
Oil Capacity 1.9L
Dimensions 405 x 410 x 438mm
Dry Weight 44.4kg

the honda advantage

no fuel mixing

FUEL EFFICIENT & enviro friendly

EASY START

power & torque

3 year warranty

Honda's leading range of power equipment comes with leading warranty periods. Our range of GX engines carrying up to a 3 year warranty*.

With regular servicing by a Honda authorised dealer, using only Honda Genuine Parts and Accessories, your Honda product will work hard around your home for many years.

Find more details on Honda's warranties and the warranty schedule on our warranty page.

LEARN MORE

Enquire Now


Ready to take the next step towards your Honda engine? With our nationwide network of dealers, from the far north to the deep south and everywhere in between. You can purchase online, or enquire now for more information on Honda Engines.

Enquire Now

other Enignes
